Unique Mixproof UltraPure

Alfa Laval Unique Mixproof UltraPure is designed to suit the needs of the Pharmaceutical and Biotech industries. It enables the simultaneous flow of two different fluids without the risk of cross-contamination. Modular in design, they ensure maximum uptime for continuous, high-purity processes.

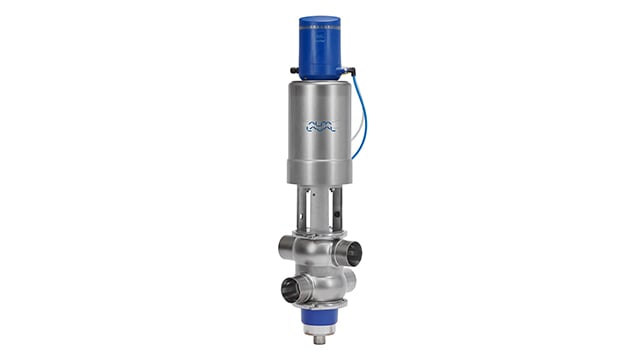

640x360 Unique Mixproof UltraPure with ThinkTop V70

The high-purity, double seat valve for continuous processes

  • Non-spilling solution
  • Easy to clean and maintain
  • Modular design enables easy configuration
  • Easy to upgrade
  • Full component traceability

The Alfa Laval Unique Mixproof UltraPure provides a higher degree of plant flexibility resulting in optimized plant efficiency without compromising product safety.

Exceptional high-purity design

This advanced double block-and-bleed valve provides long-lasting, spillage-free operation for continuous processes in the pharmaceutical, biotech, personal care and other hygienic industries. This minimizes the risk of product contamination and ensures maximum uptime as well as safe and hygienic operation.

Easy to clean and maintain

Maintenance and cleaning is quick and easy due to a top-loaded design, no adjustable components, maintenance-friendly actuator and built-in leakage detection on all seals. Like all Unique mixproof valves, the Alfa Laval Unique Mixproof UltraPure meets stringent hygienic standards.

Easy to configure and upgrade

Optimize your hygienic process by customizing the Unique Mixproof UltraPure to suit your needs. Its modular design also makes it easy to upgrade the double seat valve whenever your process needs change while ensuring efficient, hygienic and continuous production.

Full and documented traceability

Unique Mixproof UltraPure valves come with Alfa Laval Q-doc, a comprehensive documentation package for UltraPure equipment. It ensures full traceability of all product contact parts. Based on Good Documentation Practice (GDP), Q-doc documents every aspect from raw material to delivered equipment.

How it works

.

Construction

The unique mixproof valve concept is based on a series of base components, including valve body, valve plug, actuator and cleaning options and accessories that support a wide range of applications. Using these components, you can build a Unique mixproof valve to match your exact process requirements.

To facilitate maintenance, the Unique mixproof valve also features leakage detection holes that provide advance notification of wear or damage to static o-rings. Operators can visually inspect the valve at any time without having to disassemble it.Unique Mixproof exploded view w ThinkTop V70.png

Operating principle

The Alfa Laval Unique mixproof valve is a normally closed (NC) valve that is controlled from a remote location by means of compressed air.

To separate the two liquids, the valve has two independent plug seals. The space between the two seals forms an atmospheric leakage chamber. In the rare case of accidental product leakage, the product flows into the leakage chamber and is discharged through the leakage outlet.

When the valve is open, the leakage chamber is closed. The product can then flow from one line to the other without spillage. The valve can easily be cleaned and protected against the effects of water hammer according to the specific requirements of the process and the configuration of the valve. (There is no product spillage during valve operation).

Unique Mixproof valve HIW H316xH562

Options

    • 3-A version available upon request
    • Product wetted seals HNBR, NBR, EPDM or FPM
    • Male parts or clamp liners in accordance with required standard
    • Control and indication: ThinkTop or ThinkTop Basic
    • Side indication for detection of upper seat lift



.

360° Service and maintenance videos

Alfa Laval Unique mixproof valves - replace axial seal

Alfa Laval Unique mixproof valves - replace radial seal

Alfa Laval Unique mixproof valves - replace product-wetted seals

You might also be interested in...

Unique DV-ST UltraPure

Тези компактни и леки вентили, които отговарят на изискванията на повечето стерилни и ултрахигиенични процеси, имат модулна конструкция, което позволява създаването на широк спектър от конфигурации за всяка конкретна цел.

DV-ST w ThinkTop V50 640x360

Дроселни клапани LKB UltraPure

Тези дроселни клапани са хигиенни клапани за включване/изключване за използване с течности с нисък и среден вискозитет за лична употреба, биотехнологии и фармацевтични приложения.

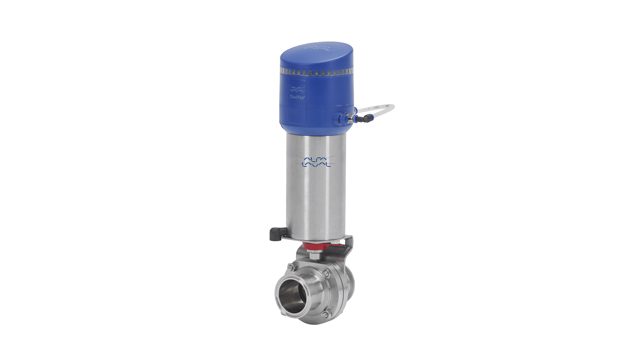

LKB Butterfly UltraPure Valve w ThinkTop V50 640x360
